MTS Off-Road Shock Body Wear Sleeve Kit w/ Crossover Rings
Description

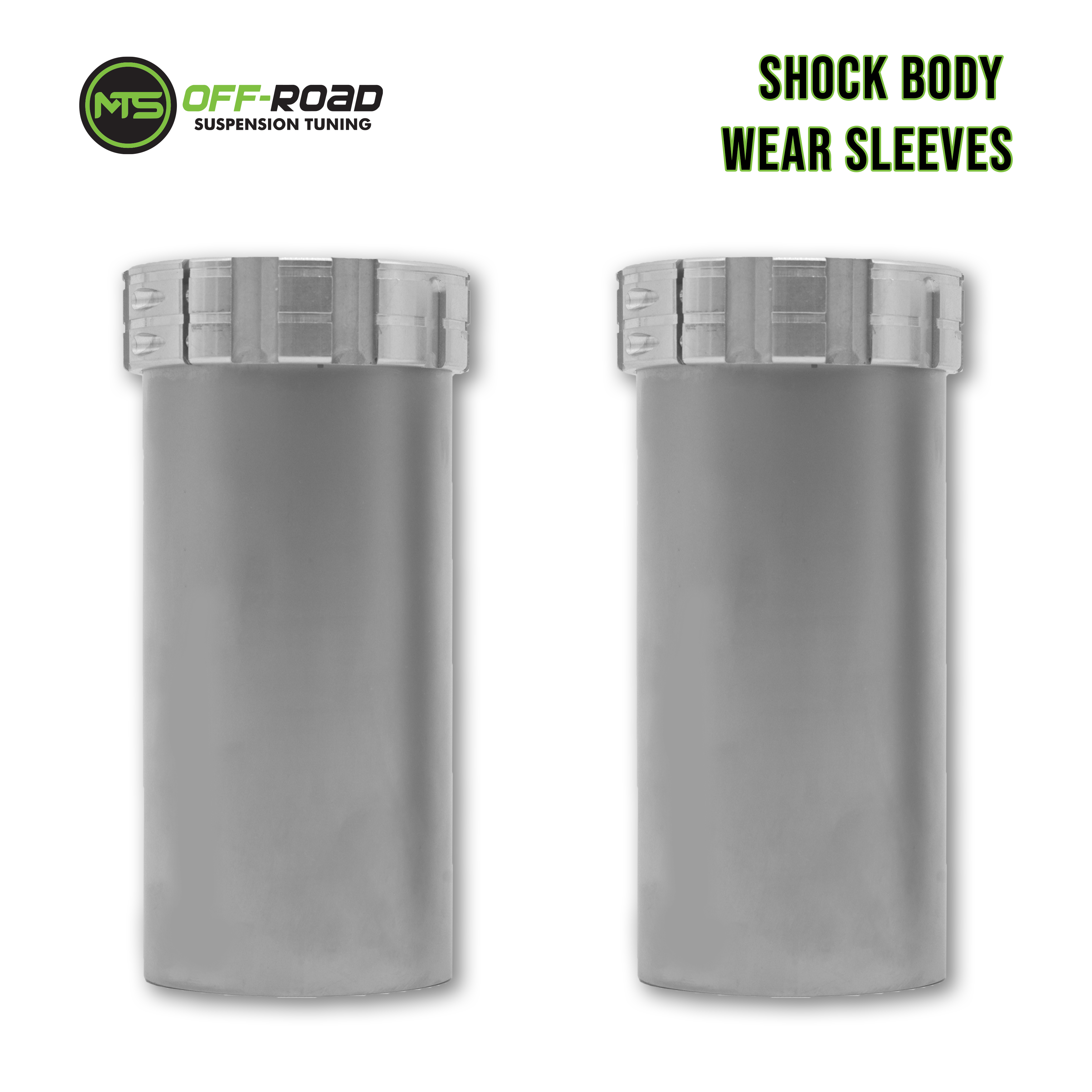

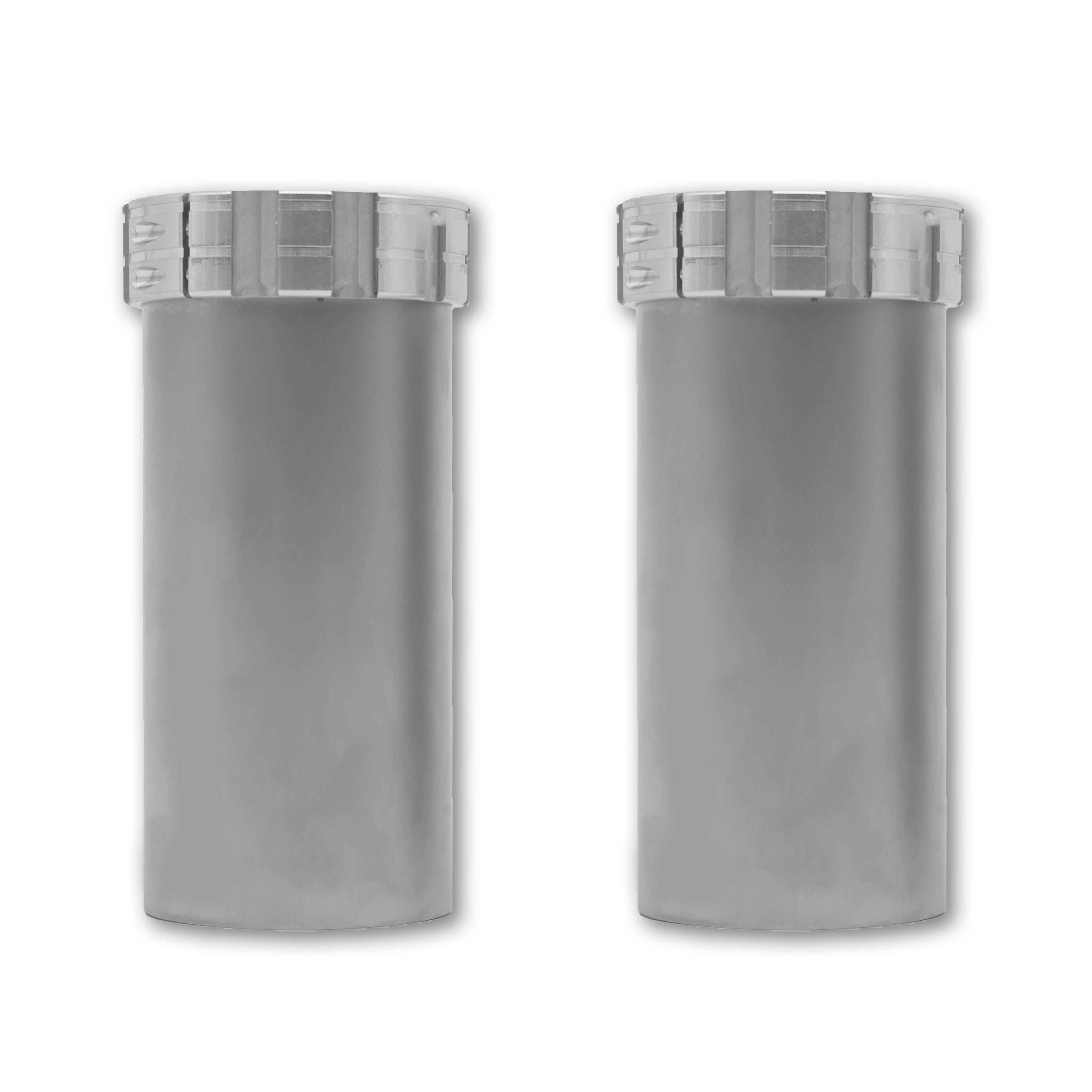

Shock Body Protective Wear Sleeve – Metal Guard w/ Crossover Ring
Protect your shocks with the MTS Shock Body Wear Sleeve – a premium metal sleeve designed to shield your shock body from damaging wear caused by springs and spring dividers. This durable, precision-fit sleeve slides over the shock body and acts as a barrier, preserving the integrity of your suspension under the harshest conditions.
Manufactured to exacting standards, it offers a clean fit, reliable performance, and long-term protection for high-performance off-road shocks.
Key Features:
-
Protects shock bodies from direct contact with springs and dividers
-
Machined for a snug, slip-on installation
-
Built from high-strength metal for durability and impact resistance
-
Designed in collaboration with Fox using their patented concept
Included:
- (2) Metal Wear Sleeves
- (2) Billet 2-Piece Crossover Rings
- (16) Crossover Ring Bolts
- (2) Spring Dividers

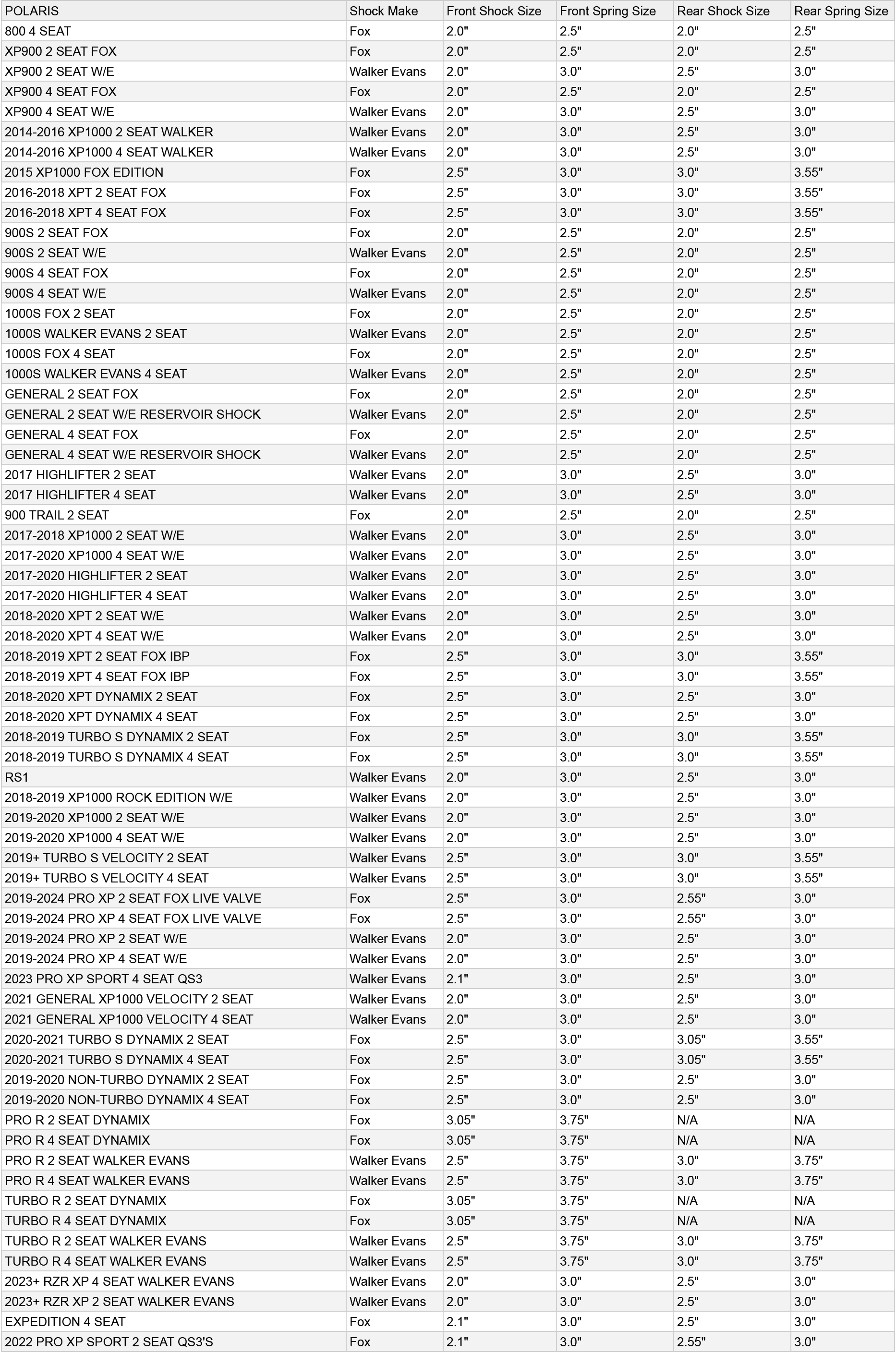

Shock Size Guide for MTS Offroad Wear Sleeve Kits |
|||||
| POLARIS | Shock Make | Front Shock Size | Front Spring Size | Rear Shock Size | Rear Spring Size |
| 800 4 SEAT | Fox | 2.0" | 2.5" | 2.0" | 2.5" |
| XP900 2 SEAT FOX | Fox | 2.0" | 2.5" | 2.0" | 2.5" |
| XP900 2 SEAT W/E | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| XP900 4 SEAT FOX | Fox | 2.0" | 2.5" | 2.0" | 2.5" |
| XP900 4 SEAT W/E | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2014-2016 XP1000 2 SEAT WALKER | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2014-2016 XP1000 4 SEAT WALKER | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2015 XP1000 FOX EDITION | Fox | 2.5" | 3.0" | 3.0" | 3.55" |
| 2016-2018 XPT 2 SEAT FOX | Fox | 2.5" | 3.0" | 3.0" | 3.55" |
| 2016-2018 XPT 4 SEAT FOX | Fox | 2.5" | 3.0" | 3.0" | 3.55" |
| 900S 2 SEAT FOX | Fox | 2.0" | 2.5" | 2.0" | 2.5" |
| 900S 2 SEAT W/E | Walker Evans | 2.0" | 2.5" | 2.0" | 2.5" |
| 900S 4 SEAT FOX | Fox | 2.0" | 2.5" | 2.0" | 2.5" |
| 900S 4 SEAT W/E | Walker Evans | 2.0" | 2.5" | 2.0" | 2.5" |
| 1000S FOX 2 SEAT | Fox | 2.0" | 2.5" | 2.0" | 2.5" |
| 1000S WALKER EVANS 2 SEAT | Walker Evans | 2.0" | 2.5" | 2.0" | 2.5" |
| 1000S FOX 4 SEAT | Fox | 2.0" | 2.5" | 2.0" | 2.5" |
| 1000S WALKER EVANS 4 SEAT | Walker Evans | 2.0" | 2.5" | 2.0" | 2.5" |
| GENERAL 2 SEAT FOX | Fox | 2.0" | 2.5" | 2.0" | 2.5" |
| GENERAL 2 SEAT W/E RESERVOIR SHOCK | Walker Evans | 2.0" | 2.5" | 2.0" | 2.5" |
| GENERAL 4 SEAT FOX | Fox | 2.0" | 2.5" | 2.0" | 2.5" |
| GENERAL 4 SEAT W/E RESERVOIR SHOCK | Walker Evans | 2.0" | 2.5" | 2.0" | 2.5" |
| 2017 HIGHLIFTER 2 SEAT | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2017 HIGHLIFTER 4 SEAT | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 900 TRAIL 2 SEAT | Fox | 2.0" | 2.5" | 2.0" | 2.5" |
| 2017-2018 XP1000 2 SEAT W/E | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2017-2020 XP1000 4 SEAT W/E | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2017-2020 HIGHLIFTER 2 SEAT | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2017-2020 HIGHLIFTER 4 SEAT | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2018-2020 XPT 2 SEAT W/E | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2018-2020 XPT 4 SEAT W/E | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2018-2019 XPT 2 SEAT FOX IBP | Fox | 2.5" | 3.0" | 3.0" | 3.55" |
| 2018-2019 XPT 4 SEAT FOX IBP | Fox | 2.5" | 3.0" | 3.0" | 3.55" |
| 2018-2020 XPT DYNAMIX 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2018-2020 XPT DYNAMIX 4 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2018-2019 TURBO S DYNAMIX 2 SEAT | Fox | 2.5" | 3.0" | 3.0" | 3.55" |
| 2018-2019 TURBO S DYNAMIX 4 SEAT | Fox | 2.5" | 3.0" | 3.0" | 3.55" |
| RS1 | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2018-2019 XP1000 ROCK EDITION W/E | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2019-2020 XP1000 2 SEAT W/E | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2019-2020 XP1000 4 SEAT W/E | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2019+ TURBO S VELOCITY 2 SEAT | Walker Evans | 2.5" | 3.0" | 3.0" | 3.55" |
| 2019+ TURBO S VELOCITY 4 SEAT | Walker Evans | 2.5" | 3.0" | 3.0" | 3.55" |
| 2019-2024 PRO XP 2 SEAT FOX LIVE VALVE | Fox | 2.5" | 3.0" | 2.55" | 3.0" |
| 2019-2024 PRO XP 4 SEAT FOX LIVE VALVE | Fox | 2.5" | 3.0" | 2.55" | 3.0" |
| 2019-2024 PRO XP 2 SEAT W/E | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2019-2024 PRO XP 4 SEAT W/E | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2023 PRO XP SPORT 4 SEAT QS3 | Walker Evans | 2.1" | 3.0" | 2.5" | 3.0" |
| 2021 GENERAL XP1000 VELOCITY 2 SEAT | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2021 GENERAL XP1000 VELOCITY 4 SEAT | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2020-2021 TURBO S DYNAMIX 2 SEAT | Fox | 2.5" | 3.0" | 3.05" | 3.55" |
| 2020-2021 TURBO S DYNAMIX 4 SEAT | Fox | 2.5" | 3.0" | 3.05" | 3.55" |
| 2019-2020 NON-TURBO DYNAMIX 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2019-2020 NON-TURBO DYNAMIX 4 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| PRO R 2 SEAT DYNAMIX | Fox | 3.05" | 3.75" | N/A | N/A |
| PRO R 4 SEAT DYNAMIX | Fox | 3.05" | 3.75" | N/A | N/A |
| PRO R 2 SEAT WALKER EVANS | Walker Evans | 2.5" | 3.75" | 3.0" | 3.75" |
| PRO R 4 SEAT WALKER EVANS | Walker Evans | 2.5" | 3.75" | 3.0" | 3.75" |
| TURBO R 2 SEAT DYNAMIX | Fox | 3.05" | 3.75" | N/A | N/A |
| TURBO R 4 SEAT DYNAMIX | Fox | 3.05" | 3.75" | N/A | N/A |
| TURBO R 2 SEAT WALKER EVANS | Walker Evans | 2.5" | 3.75" | 3.0" | 3.75" |
| TURBO R 4 SEAT WALKER EVANS | Walker Evans | 2.5" | 3.75" | 3.0" | 3.75" |
| 2023+ RZR XP 4 SEAT WALKER EVANS | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| 2023+ RZR XP 2 SEAT WALKER EVANS | Walker Evans | 2.0" | 3.0" | 2.5" | 3.0" |
| EXPEDITION 4 SEAT | Fox | 2.1" | 3.0" | 2.5" | 3.0" |
| 2022 PRO XP SPORT 2 SEAT QS3'S | Fox | 2.1" | 3.0" | 2.55" | 3.0" |
| EXPEDITION 4 SEAT W/ THUMPER FAB LONG TRAVEL | Fox | 2.1" | 3.0" | 2.55" | 3.0" |

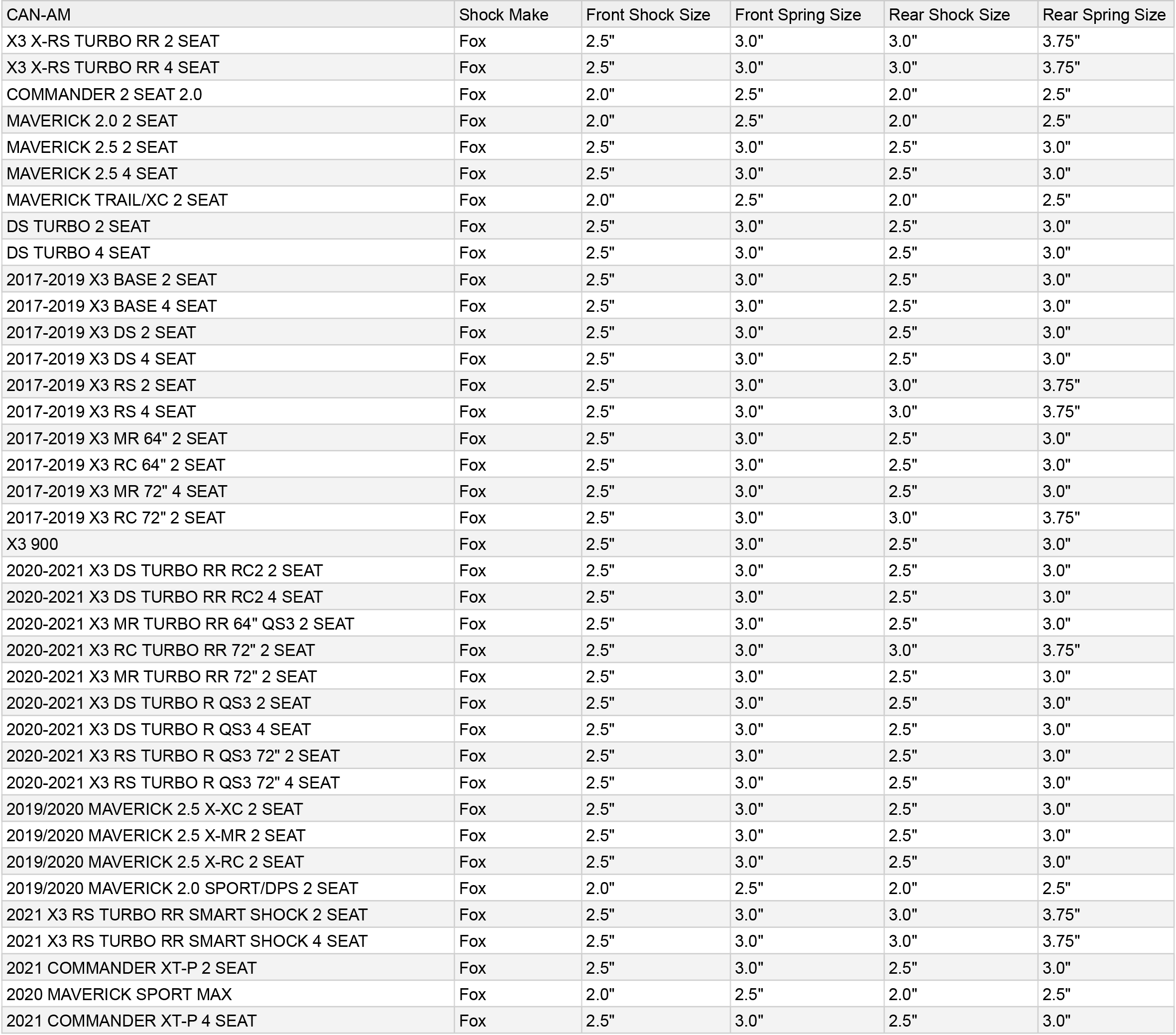

| CAN-AM | Shock Make | Front Shock Size | Front Spring Size | Rear Shock Size | Rear Spring Size |
| COMMANDER 2 SEAT 2.0 | Fox | 2.0" | 2.5" | 2.0" | 2.5" |
| MAVERICK 2.0 2 SEAT | Fox | 2.0" | 2.5" | 2.0" | 2.5" |
| MAVERICK 2.5 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| MAVERICK 2.5 4 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| MAVERICK TRAIL/XC 2 SEAT | Fox | 2.0" | 2.5" | 2.0" | 2.5" |
| DS TURBO 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| DS TURBO 4 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2017-2019 X3 BASE 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2017-2019 X3 BASE 4 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2017-2019 X3 DS 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2017-2019 X3 DS 4 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2017-2019 X3 RS 2 SEAT | Fox | 2.5" | 3.0" | 3.0" | 3.75" |
| 2017-2019 X3 RS 4 SEAT | Fox | 2.5" | 3.0" | 3.0" | 3.75" |
| 2017-2019 X3 MR 64" 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2017-2019 X3 RC 64" 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2017-2019 X3 MR 72" 4 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2017-2019 X3 RC 72" 2 SEAT | Fox | 2.5" | 3.0" | 3.0" | 3.75" |
| X3 900 | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2020-2021 X3 DS TURBO RR RC2 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2020-2021 X3 DS TURBO RR RC2 4 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| X3 RS TURBO RR 2 SEAT | Fox | 2.5" | 3.0" | 3.0" | 3.75" |
| X3 RS TURBO RR 4 SEAT | Fox | 2.5" | 3.0" | 3.0" | 3.75" |
| 2020-2021 X3 MR TURBO RR 64" QS3 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2020-2021 X3 RC TURBO RR 72" 2 SEAT | Fox | 2.5" | 3.0" | 3.0" | 3.75" |
| 2020-2021 X3 MR TURBO RR 72" 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2020-2021 X3 DS TURBO R QS3 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2020-2021 X3 DS TURBO R QS3 4 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2020-2021 X3 RS TURBO R QS3 72" 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2020-2021 X3 RS TURBO R QS3 72" 4 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2019/2020 MAVERICK 2.5 X-XC 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2019/2020 MAVERICK 2.5 X-MR 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2019/2020 MAVERICK 2.5 X-RC 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2019/2020 MAVERICK 2.0 SPORT/DPS 2 SEAT | Fox | 2.0" | 2.5" | 2.0" | 2.5" |
| 2021 X3 RS TURBO RR SMART SHOCK 2 SEAT | Fox | 2.5" | 3.0" | 3.0" | 3.75" |
| 2021 X3 RS TURBO RR SMART SHOCK 4 SEAT | Fox | 2.5" | 3.0" | 3.0" | 3.75" |
| 2021 COMMANDER XT-P 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| 2020 MAVERICK SPORT MAX | Fox | 2.0" | 2.5" | 2.0" | 2.5" |
| 2021 COMMANDER XT-P 4 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| YAMAHA | Shock Make | Front Shock Size | Front Spring Size | Rear Shock Size | Rear Spring Size |
| YXZ 1000R BASE RC2 | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| YXZ 1000R SS OR SE X2 | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| WOLVERINE RMAX 1000/SPEC/XT-R 2 SEAT | Fox | 2.1" | 2.5" | 2.1" | 2.5" |
| WOLVERINE RMAX 1000/SPEC/XT-R 4 SEAT | Fox | 2.1" | 2.5" | 2.1" | 2.5" |
| RMAX LIMITED 2 SEAT | Fox | 2.1" | 2.5" | 2.1" | 2.5" |
| RMAX LIMITED 4 SEAT | Fox | 2.1" | 2.5" | 2.1" | 2.5" |
| RMAX SPORT 2 SEAT KIT | Fox | 2.1" | 2.5" | 2.1" | 2.5" |
| TEXTRON | Shock Make | Front Shock Size | Front Spring Size | Rear Shock Size | Rear Spring Size |
| WILDCAT XX 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| KAWASAKI | Shock Make | Front Shock Size | Front Spring Size | Rear Shock Size | Rear Spring Size |
| KRX 2 SEAT | Fox | 2.55" | 3.0" | N/A | N/A |
| KRX 2 SEAT LIVE VALVE | Fox | 2.55" | 3.0" | N/A | N/A |
| KRX 4 SEAT LIVE VALVE | Fox | 2.55" | 3.0" | N/A | N/A |
| KRX 4 SEAT | Fox | 2.55" | 3.0" | N/A | N/A |
| HONDA | Shock Make | Front Shock Size | Front Spring Size | Rear Shock Size | Rear Spring Size |
| TALON 1000R 4 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| TALON 1000X 2 SEAT | Fox | 2.0" | 2.5" | 2.0" | 2.5" |
| TALON 1000R 2 SEAT | Fox | 2.5" | 3.0" | 2.5" | 3.0" |
| TALON 1000X LIVE VALVE 4 SEAT | Fox | 2.5" | 3.0" | 2.55" | 3.0" |
| TALON 1000X 4 SEAT | Fox | 2.0" | 2.5" | 2.55" | 3.0" |
| TALON 1000R 2 SEAT LIVE VALVE | Fox | 2.5" | 3.0" | 2.55" | 3.0" |
| TALON 1000X 2 SEAT LIVE VALVE | Fox | 2.5" | 3.0" | 2.55" | 3.0" |
| 2021+ TALON 1000X NON LIVE VALVE | Fox | 2.0" | 2.5" | 2.0" | 2.5" |
| TALON 1000R 4 SEAT LIVE VALVE | Fox | 2.5" | 3.0" | 2.55" | 3.0" |
MTS Off-Road Shock Body Wear Sleeve Kit w/ Crossover Rings
Sale price$175.00
Regular price (/)
